Vivotek Smart city license plate recognition box camera kit

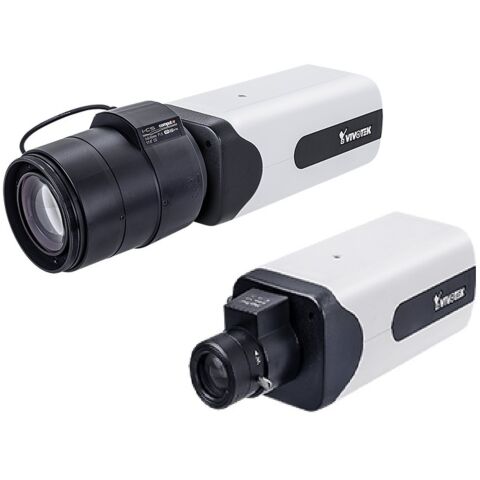

Vivotek Smart city license plate recognition box camera kit, License plate reading with vehicle Type & Colour & direction recognition, IP9165-LPR-V2 (9-50mm i-CS) camera & IP9165-LPR-V2 (12-40mm) camera, 1920x1080 (2MP) Maximum Resolution, WDR Pro II, Headlight Filter design for Anti-Glare, Built-In 32GB MicroSD card for LPR images, H.265 / H.264 / MJPEG Video Compression, 60 fps @ 1920x1080 Maximum Frame rate, 3 simultaneous streams, 140 dB Dynamic range, Two-Way audio, External Microphone Input, External line Output, Live viewing for up to 10 clients, 10 BASE-T/100 Base-TX Ethernet

Overview:

IP9165-LPR-v2
Smart City License Plate Recognition Box Camera

LPR
i-CS
60MPH
WDR Pro II
Trend Micro IoT Security
NDAA
Features:

Supports License Plates from over 100+ Countries
License Plate Reading with Vehicle Type, Color & Direction Recognition
Black and White Lists for License Plate Verification
Fully Support VAST 2
Various Open APIs Available for 3rd Party Integration
Trend Micro IoT Security
NDAA Compliance
VIVOTEKs IP9165-LPR-v2 camera is a standalone LPR+ camera system, featuring a built-in license plate recognition system along with vehicle type and color recognition. The Traffic VCA LPR+ provides not only license plate reading with white and black-list system for vehicle verification but also the vehicle type and color recognition for traffic flow anlysis or target vehicle tracking application.

It also offers various APIs for integration with 3rd party backend systems. Featuring with the new evidence function can be combined with a snapshot of the connecting camera through the RTSP stream, providing the road overview and LPR result images simultaneously to reinforce the strength of evidence.VIVOTEKs IP9165-LPR-v2 camera is designed for the toll management, community security, and smart city applications.

Traffic VCA LPR+
Our latest license plate recognition software, Traffic VCA LPR+, can not only accurately verify a vehicle's license numbers but also provisions supporting parameters such as vehicle type, color, and direction. Therefore, multiple variables are factored in for access control and forensics evidence, beneficial to the smart city application.

Tracking Traffic Flows
Identify the wrong-way driving of target vehicles in a vast of footage. Reinforce the accuracy of law enforcement and reduce the time of forensics search, with the variable selectors in Traffic VCA LPR+.

List Management for Number Plate Verification
Users can manage license plate lists for various purposes, such as a white list that triggers a welcome message, a black list that triggers an alarm, and an all plates list for access control management. Multiple lists are supported, with no limit on the number of supported license plates.

Support License Plate Recognition for over 100+ Countries
The IP9165-LPR-v2 camera can read license plates for 100+ countries or states simultaneously. When a number plate is recognized and matched the data in list such as white list, It can convert number plates into Wiegand signals through VIVOTEK Wiegand converter (AO-20W) to work with an access control system.

Specifications:

System Information
Model IP9165-LPR-v2 (9-50mm, i-CS)
IP9165-LPR-v2 (12-40mm)
CPU Multimedia SoC (System-on-Chip)
Flash 8 GB
RAM 2 GB
Camera Features
Image Sensor 1/2" Progressive CMOS
Max. Resolution 1920x1080 (2MP)
Lens Type Vari-focal, Remote Focus (i-CS), Manual Focus
Focal Length f = 9 ~ 50 mm [IP9165-LPR-v2 (9-50mm)]
f = 12 ~ 40 mm [IP9165-LPR-v2 (12-40mm)]
Aperture F1.5 ~ F1.6 [IP9165-LPR-v2 (9-50mm)]
F1.8 ~ F2.3 [IP9165-LPR-v2 (12-40mm)]
Iris Type i-CS [IP9165-LPR-v2 (9-50mm)]
P-iris [IP9165-LPR-v2 (12-40mm)]
(i-CS/P-iris/DC-iris all reserved)
Field of View IP9165-LPR-v2 (9-50mm):
42.8° ~ 8.3° (Horizontal)
24.3° ~ 4.7° (Vertical)
48.9° ~ 9.46° (Diagonal)
IP9165-LPR-v2 (12-40mm):
34.2° ~ 11.6° (Horizontal)
18.7° ~ 6.6° (Vertical)
39.8° ~ 13.3° (Diagonal)
Shutter Time 1/5 sec. to 1 / 32,000 sec.
WDR Technology WDR Pro II
Day/Night Yes
Removable IR-cut Filter Yes (Headlight filter design for Anti-Glare)
Minimum Illumination IP9165-LPR-v2 (9-50mm, i-CS): 0.01 lux @ F1.5 (Color)
IP9165-LPR-v2 (12-40mm): 0.08 lux @ F1.8 (Color)
Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage Built-in 32GB MicroSD card for LPR images
Seamless Recording to MicroSD/SDHC/SDKC card and recording to network-attached storage (NAS)
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 60 fps @ 1920x1080
Maximum Streams 3 simultaneous streams
S/N Ratio 66.2 dB
Dynamic Range 140 dB
Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks, Scheduled profile settings, HLC, defog, 3DNR, EIS, video rotation, lens profile, remote focus(i-CS), Remove back focus, Scene Mode
Audio
Audio Capability Two-way Audio
Audio Compression G.711, G.726
Audio Interface External microphone input
External line output
Network
Users Live viewing for up to 10 clients
Security Access list, CSRF protection, digest authentication, HTTPS, IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface 10 Base-T/100 Base-TX Ethernet
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF Profile G, S, T supported
Solution Integration
Embedded Software Traffic VCA LPR+
[Color: 9, Type: 5 (MOTORBIKE, CAR, VAN, TRUCK, BUS), Direction Recognition]
VADP Package Stratocast, Trend Micro IoT Security
Alarm and Event
Event Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action Camera:
Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
ANPR Software:
Socket client, socket server, onvif event, digital output trigger, HTTP(S), FTP, send event to Milestone VMS, wiegand protocol supported
General
Connectors RJ-45 cable connector f or 10/100/1000Mbps Network/PoE connection
Audio input
Audio output
AC 24V power input *1
DC 12V power input *1
Digital input *2
Digital output *2
RS485 *1
BNC *1
LED Indicator System power and status indicator
Power Input AC 24V, DC 12V, IEEE 802.3af PoE Class 0
Power Consumption DC 12V: Max. 8.88 W
AC 24V: Max. 17 W
PoE: Max. 10 W
Dimensions Without lens:
155 (D) x 70 (W) x 61 (H) mm
IP9165-LPR-v 2 (9-50mm):
263 (D) x 78 (W) x 84 (H) mm
IP9165-LPR-v 2 (12-40mm, i-CS):
203 (D) x 70 (W) x 61 (H) mm
Weight Without lens: 680 g
IP9165-LPR-v 2 (9-50mm): 970 g
IP9165-LPR-v 2 (12-40mm): 790 g
Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL/CUL
Operating Temperature Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
Humidity 90% (non-condensing)
System Requirements
Operating System Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above
Internet Explorer 11
Other Players VLC: 1.1.11 or above
Included Accessories
Packing Contents Quick installation guide, lens
* Lens: depend on model
LPR Analytics Supported Regions
North America Canada, USA* (*Small stacked characters on license plate are not supported)
South America & Central Argentina, Bermuda, Bolivia, Brazil, Chile, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Mexico, Nicaragua, Panama, Paraguay, Peru, Trinidad and Tobago, Uruguay, Venezuela, Saint Lucia, Barbados, Jamaica
Europe Andorra, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Ireland (ROI), Italy, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Spain, Sweden, Switzerland, Ukraine, United Kingdom, Great Britain, Albania, Lithuania, Latvia, Malta, Serbia, Kosovo, Montenegro, Macedonia, San Marino, Iceland
Asia Abu Dhabi, Azerbaijan, Bahrain, Dubai, Hong-Kong, Indonesia, Israel, Lebanon, Macau, Malaysia, Philippines, Russia, Singapore, Taiwan, Turkey, Vietnam, Oman, Kuwait, Uzbekistan (*Arabic alphabets are not supported)
Africa Angola, Burkina Faso, Kenya, Morocco, Nigeria, Senegal, South Africa, Tanzania, Tunisia, Uganda, Botswana, Ghana, Cameroon, Ethiopia, Djibouti, Mozambique
Oceania Australia, New Zealand
