Model

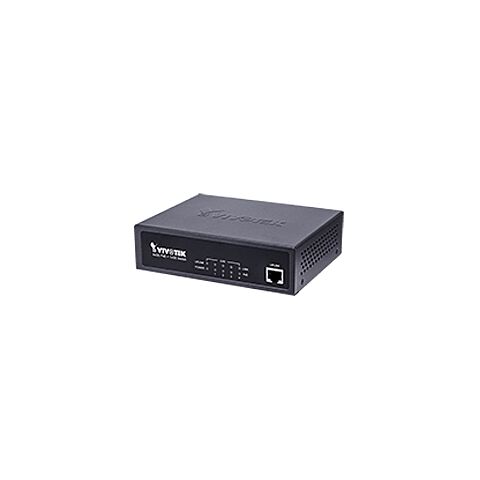

AW-GET-050A-065
IP Camera Compatibility
Video Resolution
Megapixel/D1/VGA
Video Compression
MJPEG/MPEG-4/H.264/H.265
Compatible Camera List
VIVOTEK Network Cameras
Ethernet
Gigabit Ethernet (RJ45)
5
Standards
IEEE 802.3 10-BASE-T (Ethernet)
Supported
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
Supported
IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet)
Supported
IEEE 802.3x Flow Control (Full-Duplex Flow Control)
Supported
IEEE 802.3af Power over Ethernet
Supported
IEEE 802.3at Power over Ethernet Plus
Supported
Ethernet Performance
MAC Address
8 K
Buffer Memory
96 KB
Transmission Method
Store and Forward
Backplane
10 Gbps
Jumbo Frame
9 K
Auto-MDI/MDI-X, Auto-Negotiation
Supported
Filtering/Forwarding Rates
10Mbps
14,880 pps
100Mbps
148,000 pps
1000Mbps
1,488,000 pps
Transmission Media
10Base T
Cat. 3, 4, 5 UTP/STP
100Base TX
Cat. 5, 5e UTP/STP
1000Base T
Cat. 5e, 6, 7 UTP/STP
* It is highly recommended to use standard Cat. 5e/6/7 cables which are compliant with the 3P/ETL standard.
PoE Function
Number of PoE Out Ports
4
PoE Power Output
Per Port 56VDC, Max. 30W
Total PoE Power Budget
60 W
802.3at/af Standard Compatible
Yes
Over Current Protection
Supported
Circuit Shorting Protection
Supported
Power Pin Assignment
1/2(+), 3/6(-)
PoE PD Auto Detection
Yes
General
LED Indicators
Power, Uplink, LAN ports x4, PoE ports x4
Power Input
100~240V AC / 50~60Hz
Power Consumption
65 W
Operating Temperature
0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature
-20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity
10~90% (Non-condensing)
Dimensions
160 (L) x 123 (W) x 44 (H) mm
Weight
0.8 kg
Safety Certifications
CE, C-Tick, FCC, LVD, VCCI
Accessories
Included Accessories
Power cord, QIG
