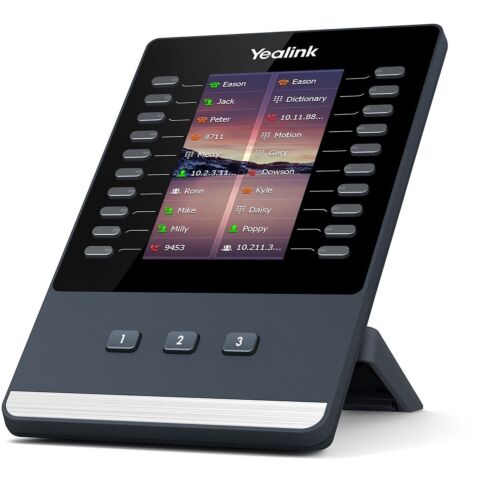

Yealink LCD Expansion module for T43u / T46u / T48u phones, 4.3-inch color-screen LCD, 20 physical keys each with a dual-color LED
Overview:
EXP43
The Yealink EXP43 Color Expansion Module for Yealink T43U/T46U/T48U IP phones, is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call handling capabilities. For example, three pages of 20 flexible button shown on the display can be programmed up to 60 various features. The functionality of Yealink T43U/T46U/T48U IP phones will also be extended by the EXP43, you can set the provided multifunctional line keys as BLF, speed dial, call forward, transfer, call park, call pickup, etc. The Yealink EXP43 Color Expansion Module is an ideal solution for receptionists, administrative assistants and contact center workers and gives you the ability to monitor contacts and manage a large volume of calls with ease.
Features:
User-friendly Structure Design
Intuitive Visualization
High Expansibility
Specifications:
Display 4.3" 272x480-pixel color display with backlight
16 bit depth color
Three page views are possible
Different color icons for each function shown on the LCD
Features Keys and Indicator 20 physical keys each with a dual-color LED
40 additional keys through page switch
3 independent control keys with illuminated LED are used for fast switching pages
Programmable for shared line, BLF List, call park, conference, forward, group pickup, group listening, LDAP, XML Browser...
Features Wallpaper, screensaver, power saving
Stand with 2 adjustable angles
For support of two or three Expansion Modules, an external Yealink power adapter (5V/2A) is required.
Up to three EXP43 can be attached on Yealink
T43U/T46U/T48U IP phones
USB port (2.0 compliant) for data in and out
USB port (2.0 compliant) for:
- wired/wireless USB headset
- Wi-Fi through WF40/WF50
- USB call recording through USB flash drive
Max power consumption (PSU): 1.5W
Dimension (W*D*H*T):
196.5mm*124.0mm*137.5mm*42.6mm
Applies to Yealink T43U/T46U/T48U
Operating temperature: 0~40°C (+32~104°F)
Operating humidity: 10~95%
Package Features Package content:
- Yealink EXP43 Color Expansion Module
- Stand
- Connecting Sheet
- USB Cable
- Screwdriver
- Screws
- Quick Start Guide
