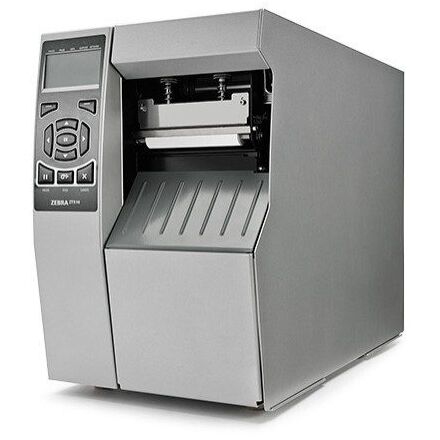

Zebra ZT510 4 inch Thermal Transfer Receipt Printer - USB LAN Parallel

Zebra ZT510 4" Thermal Transfer Receipt Printer, 203 dpi Resolution, Tear, UK and Euro Power cords, Media hanger, Thermal Transfer & Direct Thermal print modes, USB 2.0, Serial, Parallel, Gigabit Ethernet, Bluetooth low energy, 512MB SDRAM Memory, 2GB Flash Memory, Adjustable transmissive & fixed reflective sensor, 104 mm Maximum print width, 12 IPS / 305 mm per second Maximum print speed, Adjustable Transmissive & Fixed Reflective Sensor

Overview:

To keep critical operations running smoothly, budget-conscious decision makers need printing systems that strike a balance between performance and value. Thats why Zebras ZT510 provides all the core features you need without the added cost of those you dont.

Building on the legacy of its industry-leading 105SLPlus predecessor, the ZT510 provides the rugged durability and 24/7 reliability you expect from a Zebra printer, plus next-generation high-duty-cycle print performance, fast processing, intelligent Link-OS monitoring and management capabilities, and flexible, future-ready adaptability. This workhorse is engineered to power through every challenge in the years to come- without breaking your bottom line.

Features:

Taking The 105SLPlus To A New Level With Expanded Performance and Value
Designed to strike the ideal balance between performance and value, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. Building on the legacy of its industry-leading predecessor, the Zebra 105SLPlus, the ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come- all at an exceptional value.

Link-OS for greater visibility, remote management and easier maintenance
Zebras highly intelligent, best-in-class Link-OS environment provides greater insight into the real-time status and functions of your printing processes. With Link-OS, you can use a single cloud-based application to manage routing, firmware updates, printer configuration and more, on-site or remotely. And applications like Virtual Devices, Profile Manager, Near Field Communication (NFC) and Print Touch make it easy to integrate, update and contact support.

Outstanding performance at exceptional value
Zebras industrial printers are well-known for their durability, fast print speed, long life span and unparalleled reliability. The budget-friendly ZT510 carries on that legacy, with:

24/7 reliability to eliminate downtime
You need printing systems that can support your critical processes and keep you ahead of increasing demands. The ZT510 features Zebras world-renowned, high-quality print mechanisms and internal components to ensure flawless 24/7 performance, provide consistently outstanding quality and virtually eliminate costly downtime.

Unrivaled durability in the toughest conditions
With an all-metal design, rugged construction and sealed dome buttons to prevent ingress of dust, dirt and moisture, the ZT510 is right at home in todays harshest manufacturing and warehouse environments. This durable workhorse is engineered to withstand years of continuous operation, plus extreme temperatures, debris, rough handling and more.

Value that wont break your budget
The ZT510 is ideal for cost-conscious companies, offering next-generation print performance at an exceptional value. It provides high duty cycle, rugged reliability, fast processing, advanced Link-OS capabilities and all the basic features you need- without the added cost of those you dont. Its even ENERGY STAR qualified to further protect your bottom line.

A variety of connectivity options for flexible configuration
Featuring a variety of standard communication options including USB, Serial, Gigabit Ethernet and Bluetooth LE, the ZT510 is easy to integrate into existing systems and connect to various networks. Optional Parallel, 802.11a/c with Bluetooth 4.0, USB Host and IPv6 are also available.

Adaptability to meet evolving needs
The ZT510 is engineered to grow and change with your business needs in the future by simplifying hardware upgrades, integrating seamlessly with common device management software and streamlining software updates with easy-to-use Link-OS applications.

Additional capabilities that improve performance
From the fast processor that enables quick throughput of even complex graphics to the optional USB Host card slot conveniently located on the back of the printer, the ZT510 optimizes performance at every turn. And dynamic QR codes provide additional "on-demand," web-based support to resolve printer errors quickly.

Specifications:

Standard Features Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame
Thin film printhead with E3 Element Energy Equalizer for superior print quality
Communications: USB, Serial, Gigabit Ethernet, Bluetooth LE
Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection
Printer Specifications
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory 512 MB RAM memory
2 GB on-board linear Flash memory
Maximum Print Width 4.09"/104 mm
Maximum Print Speed 12 ips/305 mm per second
Media Sensors Dual media sensors: transmissive and reflective
Maximum Continuous Print Length 203 dpi: 150"/3810 mm
300 dpi: 100"/2540 mm
Media Characteristics
Media Width 0.79"/20 mm to 4.5"/114 mm
Maximum Media Roll Size 8.0"/203 mm O.D. on a 3"/76 mm I.D. core
Thickness 0.003"/0.076 mm to 0.012"/0.305 mm
Media Types Continuous, die-cut, notch, black-mark
Ribbon Characteristics
Standard Length 1476'/450 m
Width 2.00"/51 mm to 4.33"/110 mm
Core 1.0"/25.4 mm I.D.
Operating Characteristics
Environmental Operating Temperature:
Thermal transfer = 40°F to 104°F/5°C to 40°C
Direct thermal = 32°F to 104°F/0°C to 40°C
Operating Humidity: 20% to 85% non-condensing
Storage/Transportation Temperature: -22°F to 140°F/ -30°C to 60°C
Storage Humidity: 20% to 85% non-condensing
Electrical Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts
ENERGY STAR qualified
Agency Approvals IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro
Physical Characteristics
Physical Characteristics Closed
Length 20.17"/512.3 mm
Width 10.56"/268.2 mm
Height 15.58"/395.68 mm
Weight 50 lbs/22.7 kg
Software Tools
Software Tools Link-OS Solutions
Document Design - Quickly design a customized print solution using your business data and Zebra's intuitive plug-and-print design tools.
Device Integration - Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.
Device Management - Manage your print operations locally and globally with Zebra's suite of device management tools.
Developer Tools - Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.
Web View
Connect and control Zebra barcode printers using ZPL II via the printer's web interface using common web browsers.
Alert
Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimize downtime.
Firmware
Firmware ZBI 2.0 - Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals and much more.
ZPL and ZPL II - Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all Zebra printers.
XML-enabled Printing - allows XML communications for barcode label printing.
Barcode Symbologies
Barcode Symbologies Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Fonts and Graphics
Fonts and Graphics 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
Asian and other international scalable and smooth bitmapped fonts
Unicode : For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
32 MB user available DRAM
512 MB user available on-board Flash
Options and Accessories
Connectivity Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet. IPv6 option is available as an external dongle attached to a parallel port
Media Handling Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner
Cutter: Front-mount guillotine cutter and catch tray
Keyboard Display Unit ZKDU keyboard display units for stand-alone printing applications
